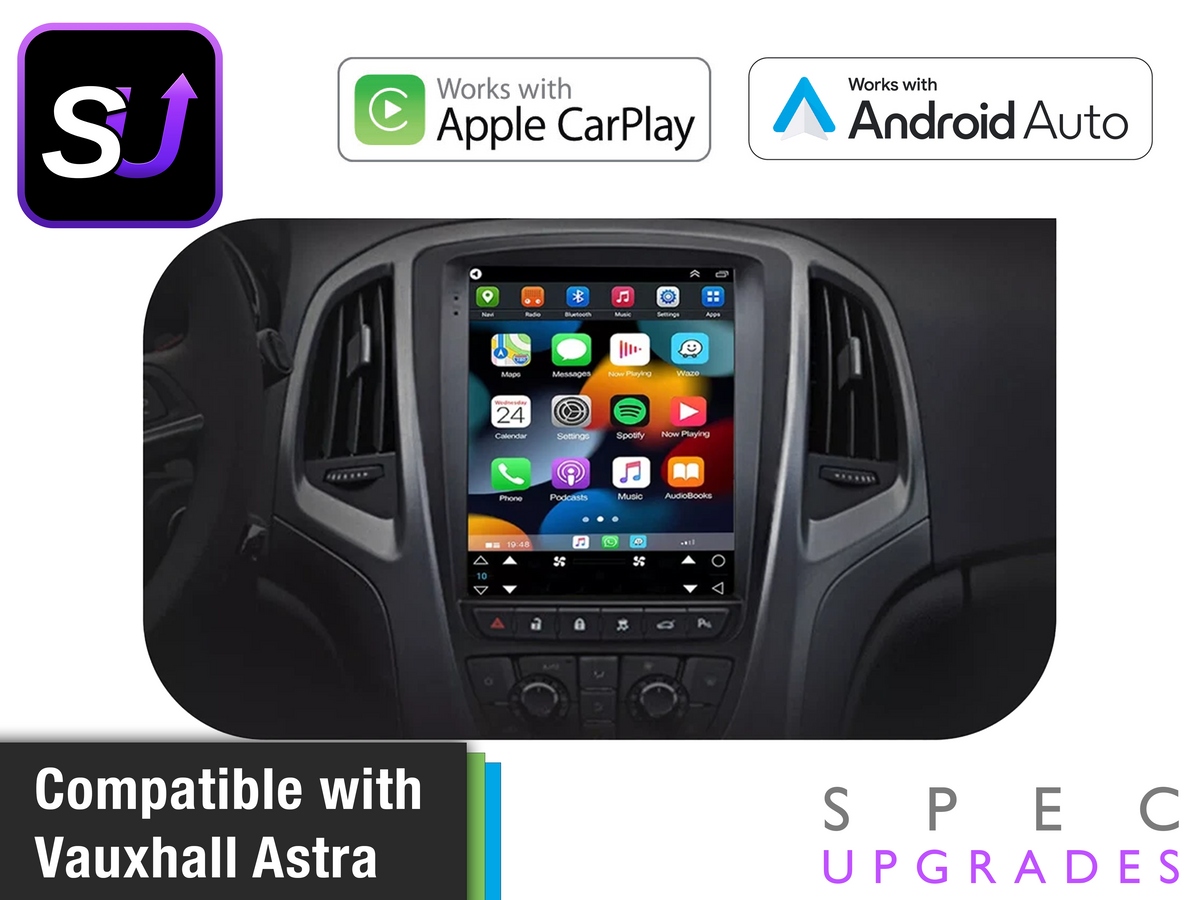

Vauxhall Astra - Apple Carplay Android Auto, Head Unit

9.7" Android Car Stereo — Vauxhall Astra J

Apple CarPlay · Android Auto · GPS Navigation · Bluetooth

Bring your Astra J up to date without changing anything
permanent. This 9.7" Android touchscreen replaces the factory
radio and connects through a plug-and-play harness that uses
your car's existing connectors — no cutting, no splicing, and
it comes straight back out if you ever want the original
radio back in.

WIRELESS CARPLAY AND ANDROID AUTO

Both wireless and wired. Maps, music, calls, messages and
voice control on a screen you can actually see, with your
phone left in your pocket.

iPhone connects through the built-in ZLINK5 app. Android
phones need the Android Auto app installed from the Play
Store.

A PROPER SCREEN

9.7 inches of capacitive touchscreen behind 2.5D tempered
glass, at 1024 x 600. Split screen means you can run
navigation on one side and music on the other, so you're not
switching back and forth at every junction.

NAVIGATION THAT WORKS WITHOUT SIGNAL

Built-in GPS with offline maps, so it keeps guiding you
through areas with no phone reception. You can also install
Google Maps, Waze or whatever you already use from the Play
Store.

Offline map data needs downloading over WiFi first.

SOUND WORTH LISTENING TO

4 x 45W through a TDA7388 amplifier, with built-in DSP so you
can tune EQ and staging properly rather than just nudging bass
and treble. FM radio with RDS and 18 presets, plus Bluetooth
hands-free calling, music streaming and automatic phonebook
sync.

YOUR STEERING WHEEL BUTTONS STILL WORK

Volume, track skip and call handling all carry over.

READY FOR A REVERSING CAMERA

Takes both AHD 720p and standard CVBS cameras — switch between
them in the settings. Select reverse and the screen changes to
the camera view automatically.

Camera sold separately.

CONNECTIONS

Two USB ports, AUX in, built-in WiFi, Bluetooth, video output
and support for an external microphone.

WILL IT FIT MY CAR?

Vauxhall Astra J, 2009 - 2015

The Astra J came with a few different dash and screen
layouts, so it's worth checking before you order. Send us a
photo of your current radio and its surround and we'll confirm
fitment for you.

SPECIFICATION

Operating system      Android 15
Chipset               8227L
Processor             Quad core
RAM.         4GB
